LSP partners Dongling Tech in offering integrated test solutions for vibration, shock and other mechanical tests.

Air-Cooled Electro-dynamic Vibration Shakers
– Output Ratings: 100 kg to 7000 kg peak force
– Frequency range up to 4000 Hz
– Useable frequency from 1 Hz
– Random Force to Sine Force ratio 1:1
– Shock Force: Twice of Sine Force
– Peak-Peak Displacement: 1″, 1.6″, 2″, 3″& 4″
– Lightweight, optimized armature
– Efficient Double Field Coil design
– Low Magnetic Flux Leakage
– Uniform Magnetic Field
– Cooling Blower with Silencer
– Ultra-Compact, Energy Efficient and High Reliability Power Amplifier
– Available with Slip-Table Assembly Combo
– Complies with European test standards and ISO Regulations

Air-Cooled Electro-dynamic Vibration Shakers
– Output Ratings: 100 kg to 7000 kg peak force
– Frequency range up to 4000 Hz
– Useable frequency from 1 Hz
– Random Force to Sine Force ratio 1:1
– Shock Force: Twice of Sine Force
– Peak-Peak Displacement: 1″, 1.6″, 2″, 3″& 4″
– Lightweight, optimized armature
– Efficient Double Field Coil design
– Low Magnetic Flux Leakage
– Uniform Magnetic Field
– Cooling Blower with Silencer
– Ultra-Compact, Energy Efficient and High Reliability Power Amplifier
– Available with Slip-Table Assembly Combo
– Complies with European test standards and ISO Regulations

3-Axis Electro-dynamic Vibration Shaker
– Simultaneous or individual 3-Axles Vibration
– Achieve Sinusoidal, Random, Shock and Special Waveforms
– 3-Dimensional synchronous and asynchronous vibration
– High-precision guiding device to ensure adequate backward stiffness and ultra-low coupling
– Available in Air-Cooled and Water-Cooled configuration
– Ultra-Compact, Energy Efficient and High Reliability Power Amplifier
– Max table size of 1000mm x 1000mm
– Complies with European test standards and ISO Regulations

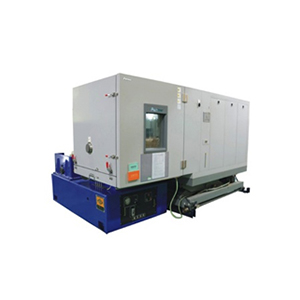

Combined Environment Test Chamber
– Integrated Vibration, Temperature, and Humidity tests environment
– Touch Screen Control with easy editing program
– Removable chamber floor design
– Test space volume from 225L to 10000L
– Humidity Range: 20 to 98 %R.H.
– Temperature Range: -70°C to +180°C
– Temperature change rate: 1 – 10 °C/minute
– Customizable to test requirements
– Complies with European test standards and ISO Regulations

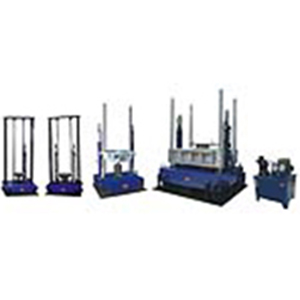

Vertical Shock Tester – Hydraulic
– Two or more guidance shafts
– Foundry table made of Magnesium and Aluminum alloy
– Digitally controlled hoist ensures perfect repeatability
– Max payload up to 1000 kg
– Max table size of 1000mm x 1200mm
– Compliance to IEC68-2-27

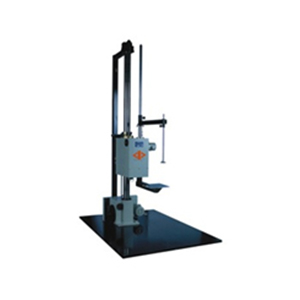

Drop Tester
– Upper and Lower position limiter
– Fully Adjustable Height from 300mm to 2000mm
– Dual Directional Guide Rail enhances stability and reliability
– Fully Adjustable angles and direction of test sample
– Max Payload: 100 kg
– Max Sample size (mm): 1000 x 800 x 1000
– Compliance to IEC68-2-27

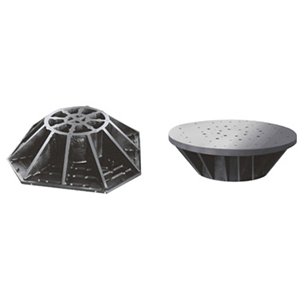

Head Expanders
– Designed using Finite Element Analysis to determine natural frequency and optimize the performance.
– Manufactured by Dongling Tech
– Choice of material: Aluminum, Magnesium
– Broad range of standard size Square and Round head expanders
